Small Twin-screw Extrusion Granulation Experimental Line -Water Cooling

WeChat

Facebook

Brand POTOP

Detail

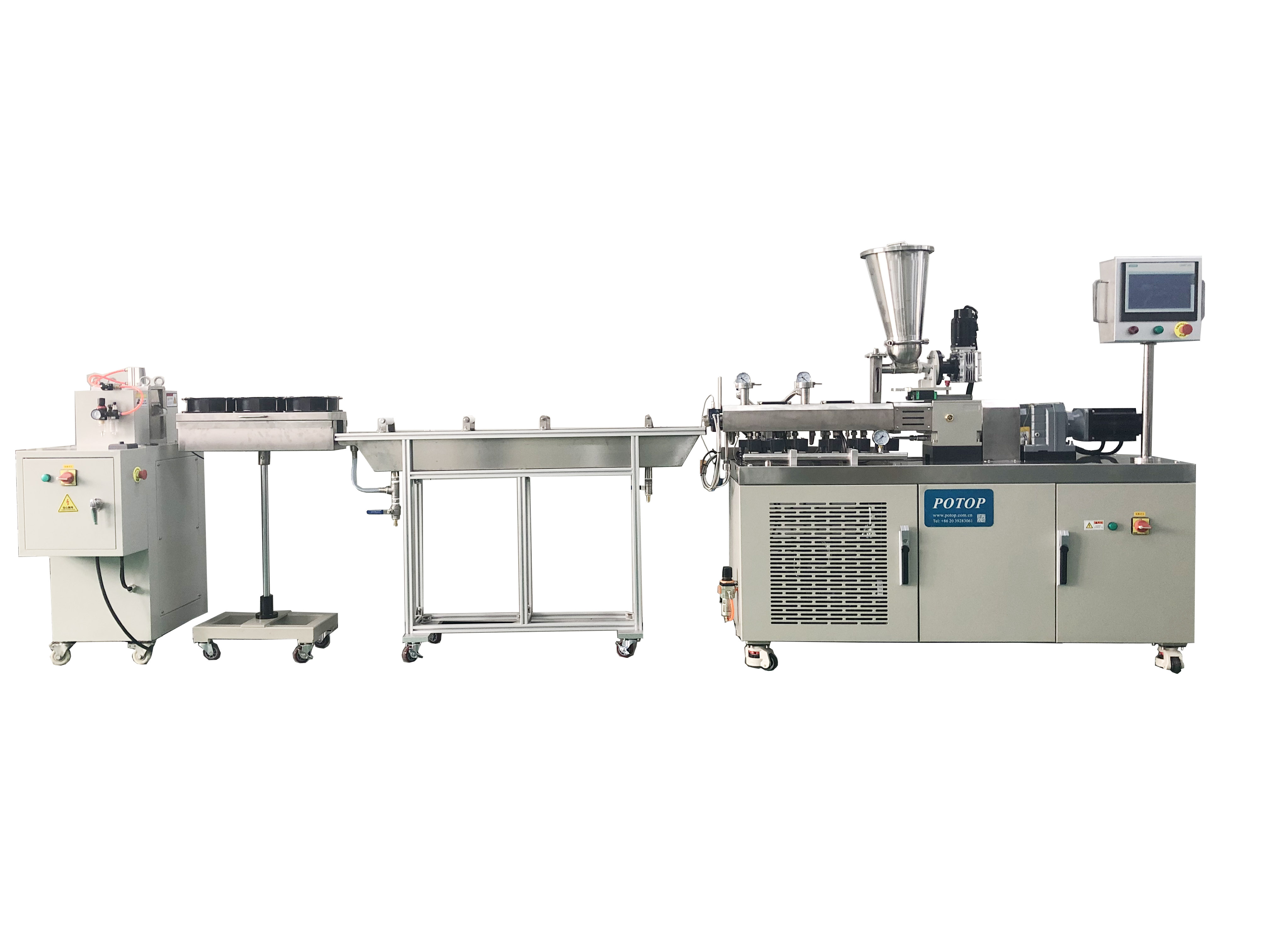

The Small Twin-screw Extrusion Granulation Experimental Line composed of twin-screw extruder, water tank, and granulator. Used for homogenization and dispersion mixing of additives within polymer matrices. The mixture of plastic particles and high proportion additives is called the masterbatch. Additives include pigments, fillers, and functional additives, usually in powder form and prone to clumping. The production process of producing granular plastics by measuring, mixing, plasticizing, and cutting polymer resins with various additives and additives.

Model	MGPL-16/40	MGPL-22/40	MGPL-35/40
Applicable materials	General plastics, engineering resins, etc	General plastics, engineering resins, etc	General plastics, engineering resins, etc
Screw rated speed	300 rpm	600 rpm	600 rpm
Screw diameter	16mm	21.7 mm	35.5 mm
L/D	40	40	40
Heating/cooling mode	Electric heating / air cooling	Electric heating / air cooling	Electric heating / air cooling
Highest working temperature	350 ℃	350 ℃	350 ℃
Temperature control accuracy	±1 ℃	±1 ℃	±1 ℃
Pressure measurement range &accuracy	0-50MPa 0.5%F.S	0-50MPa 0.5%F.S	0-50MPa 0.5%F.S
Granulating Die Head	2 strips	4 strips	6 strips
Diameter of granulating	3.2 mm	3.2 mm	3.2 mm
Water tank	1500 mm	1500 mm	2000 mm
Pelletizer	10 kg/h D:3±0.2 mm L:1～4 mm	10 kg/h D:3±0.2 mm L:1～4 mm	10 kg/h D:3±0.2 mm L:1～4 mm
Control	SIEMENS PLC	SIEMENS PLC	SIEMENS PLC
Working voltage	Three-phase 380VAC±10%,Single-phase 220VAC±10%,50Hz	Three-phase 380VAC±10%,Single-phase 220VAC±10%,50Hz	Three-phase 380VAC±10%,Single-phase 220VAC±10%,50Hz
