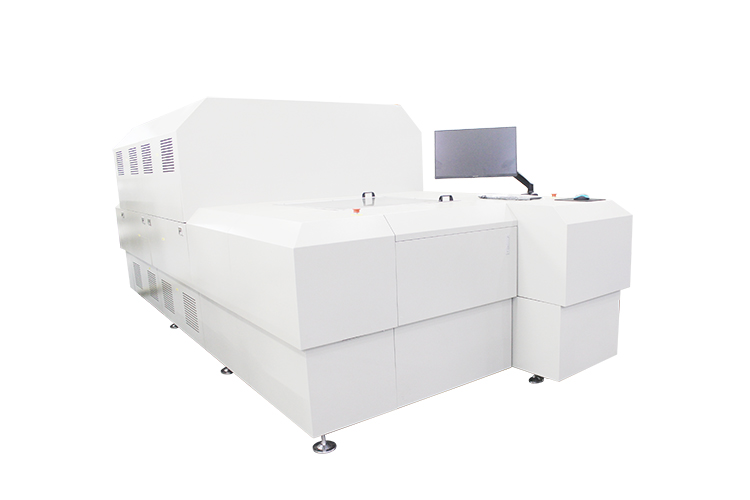

The Film biaxial stretching machine developed by Guangzhou POTOP Co., Ltd is a data-driven engineering instrument with good repeatability and accurate data; Can be operated offline, equivalent to a production line; Can improve experimental efficiency and shorten product development cycle

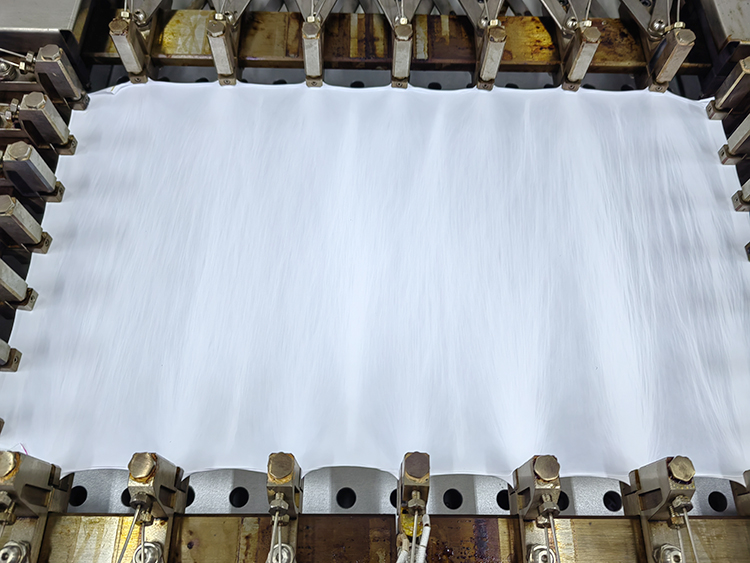

Experimental effect diagram of biaxially stretched Polytetrafluoroethylene PTFE film
FEATURES
Independently developed fixture sample thickness: 0.02-1.5mm
Variable speed stretching and stretching speed 0-300mm/s infinitely adjustable constant linear speed
Accurate stretching temperature control can test the actual temperature of the membrane
The furnace design can be adjusted according to the material characteristics
Uniform distribution of membrane stretching

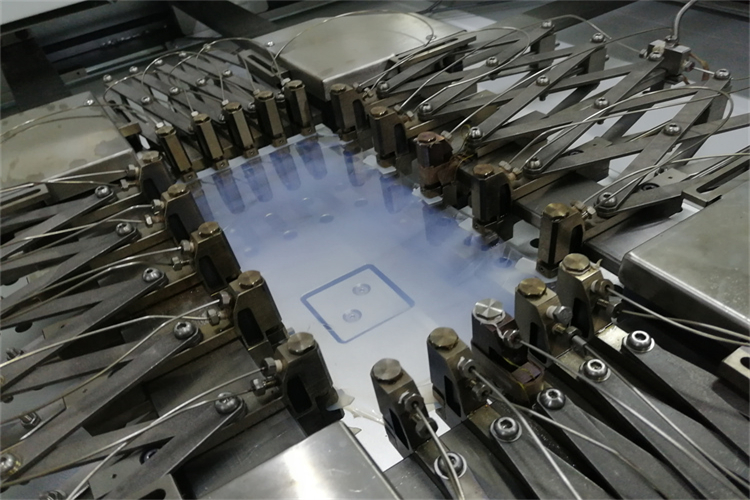

Experimental effect diagram of biaxially stretched PEEK film
APPLICATION
● New product development in the field of high-end film
| Model | FOHI-10 | ||
| Minimum size of stretched sample | 110×110mm | ||
| Max. thickness of stretched sample | 2 mm | ||
| Max. stretching ratio | 10 times | ||
| Clip number | 5pcs each side | ||
| Max. stretching speed | 300mm/s | ||
| Stretching force per axis | 1000N | ||
| Clip air pressure | 5MPa | ||
| Speed mode | Constant line speed | ||
| Stretching temperature | 350℃（High temperature version） | ||
| Total power | 80KW | ||
| L x W x H | 4400x2300x1900mm |
Note: The parameters are subject to changewithout prior notice.
