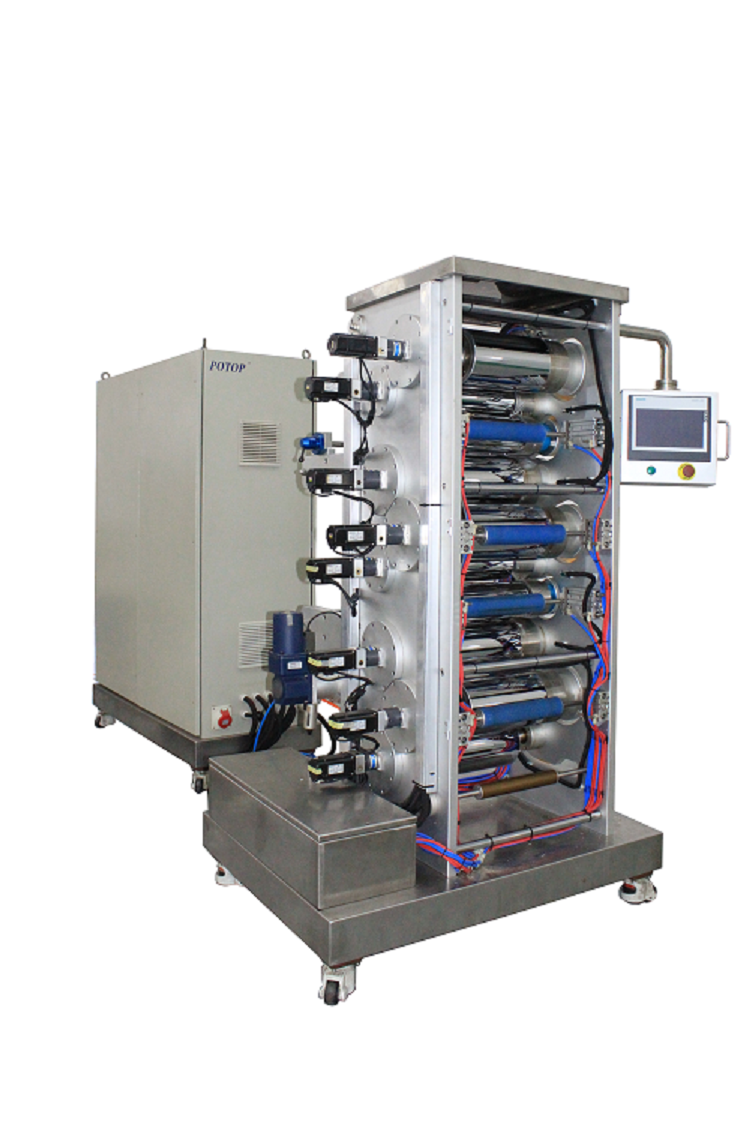

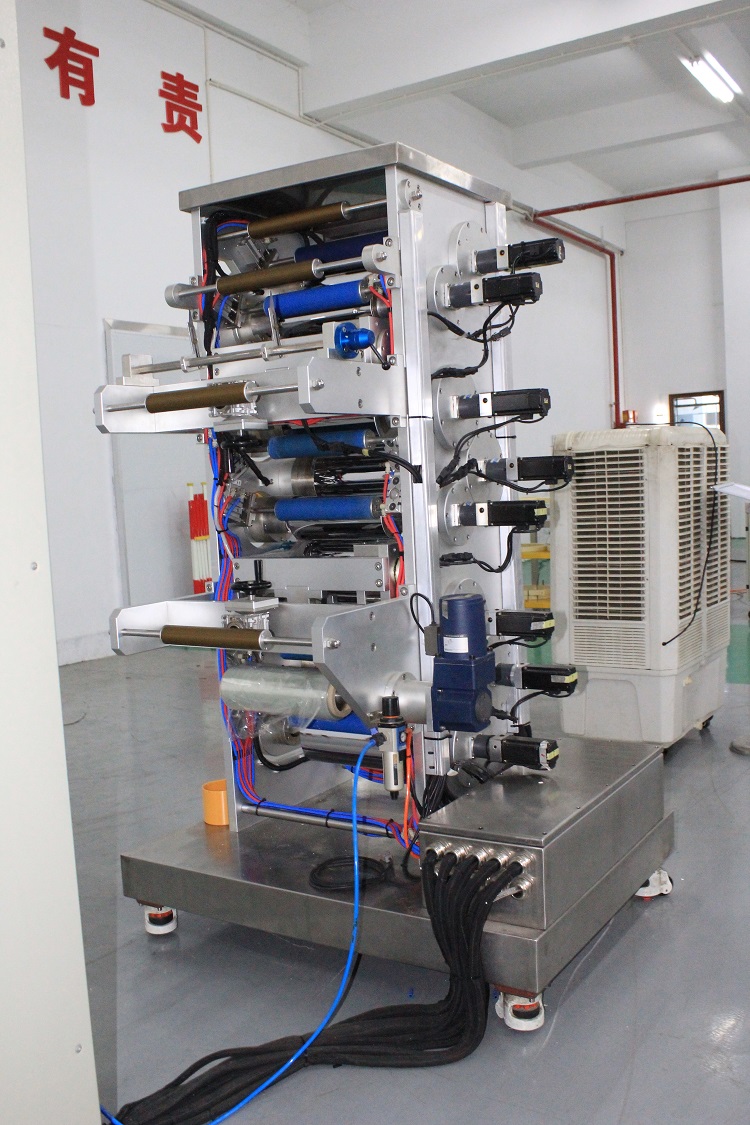

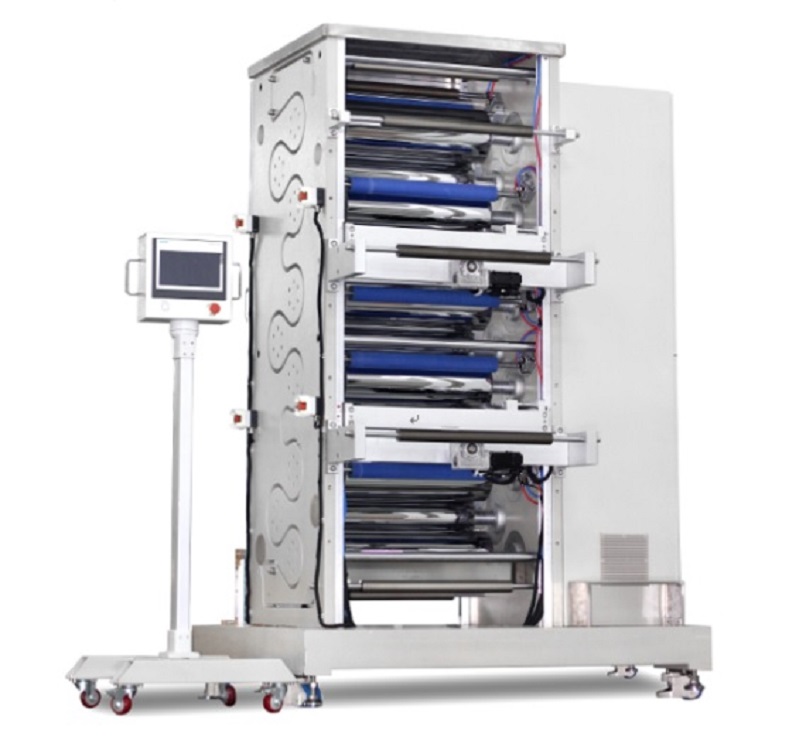

MDO Stretching Machine -CE version

Name

Parameters

preheating Rollers ( 3   Group)

diameter ф210mm , Roller   length 600mm

preheating Roller Motor   power

1kW

Maximum speed of   preheating roller

16m/min

Heating method of   Preheating Roller

Oil heating

preheating Rollers ( 3   Group)

diameter ф210mm , Roller   length 600mm

preheating Roller Motor   power

1kW

Maximum speed of   preheating roller

27 m/min

Heating method of   Preheating Roller

Oil heating

Fixed stretch roller ( 2   Group)

diameter ф120mm , Roller   length 600mm

Fixed tensile roller motor   power

1kW

Fixed tensile roller   maximum speed

Fixed Stretch roller 1 :   23m/min ,

fixed tensile roller 2 :   31m/min

Fixed tensile roller   Heating method

Oil heating

annealing Roller ( 2   Group)

diameter ф210mm , Roller   length 600mm

annealing Roller Motor   power

1kW

annealing Roller Maximum   speed

32 m/min

Annealing Roller Heating   method

Oil heating

Cooling Rollers ( 1 Group)

diameter ф210mm , Roller   length 600mm

Cooling Roller Motor power

1kW

Maximum speed of cooling   roller

32 m/min

Cooling Roller Cooling   mode

Water cooling

Voltage

AC380V 50Hz

Machine length × width ×   height

approx :3040×3200×2480mm

Storage temperature,   humidity

Temperature: -25~+55   ℃   humidity : 5~95%

Operating temperature,   humidity

Temperature:+5~+45℃   humidity :5~95%
