Desktop Blown Film Machine
    • 1/5

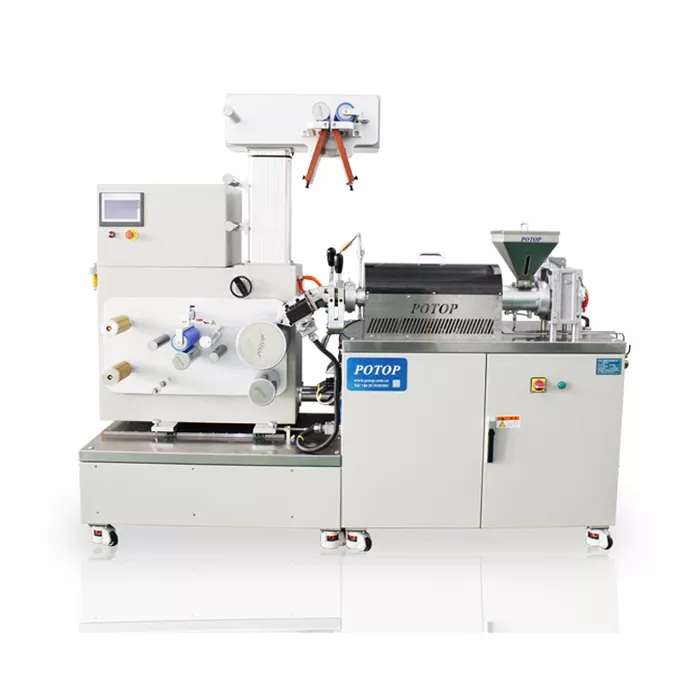

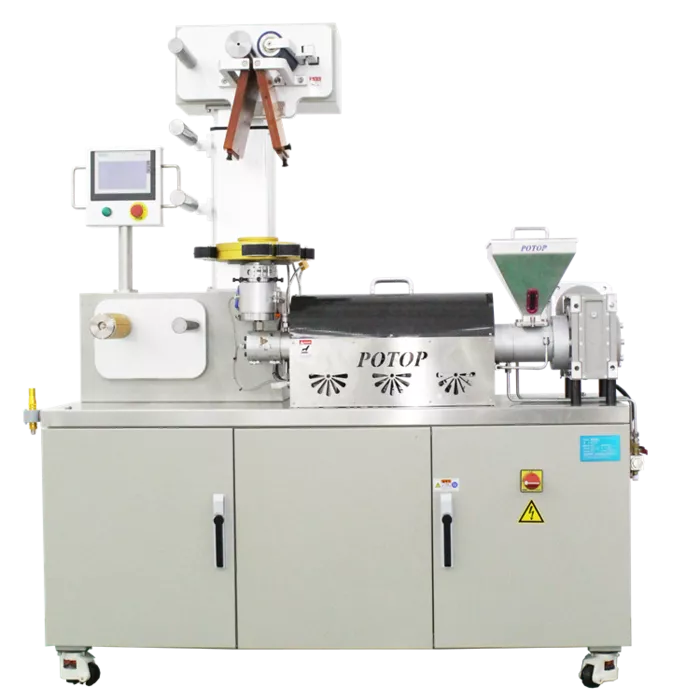

Desktop Blown Film Machine

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Product Detail



APPLICATION
● New material formulation development
● Material blown film performance test
● Masterbatch dispersion performance test
● Optimization of process parameters for blown film production
● Preparation of a single-layer blown tubular film
● Studying the blown film forming performance of materials
● Studying the dispersion performance of pigments



FEATURES
● Driven by servo motors, stepless precision speed regulation, stable plasticization and good consistency.
● Special gearbox with high-strength servo motor for excellent cooling effect.
● Electric lifting membrane frame, traction roller is cantilever structure, convenient for film leading and process adjustment.
● Equipped with blown film frame expansion device for easy transportation and movement.
● Vector ring, energy-saving, low noise.
● High-strength European-standard integrated rack with aesthetic design. Easy to operate, light and compact.
● 304 stainless steel desktop.
● Computer-based measurement and control system with user-friendly operation interface.
● Real-time measurement and graphic display of important data such as extrusion system, easy to observe.

● Emergency stop device and protective measures for operator's safety.




SPECIFICATION

ModelFBSI-20/28
Applicable materialsPE、POF、PVC etc.
Dia20mm
L/D28
Screw speed0-120rpm
Max. lay flat width120mm
Product specification0.02-0.1mm
Roller width220mm
Line speed0-10m/min
Pressure measurement range/accuracy0-50MPa，0.5%F.S
Heating/cooling methodElectric Heating/Fan cooling
Operating temperatureRoom temperature-350°C
Temperature control accuracy±1℃
Max. output5kg/h
Main motor power3kW
ControlSIEMENS PLC
Working voltageThree-phase 380VAC±10%, single-phase 220VAC±10%,50Hz
Rated powerApprox.9kW
L×W×H1650mm×610mm×2135mm
WeightApprox.550kg

Note: The parameters are subject to change without prior notice.
